The "Heart" of DC Chargers: A Deep Dive into Charging Modules' Tech, Types, and Market Trends

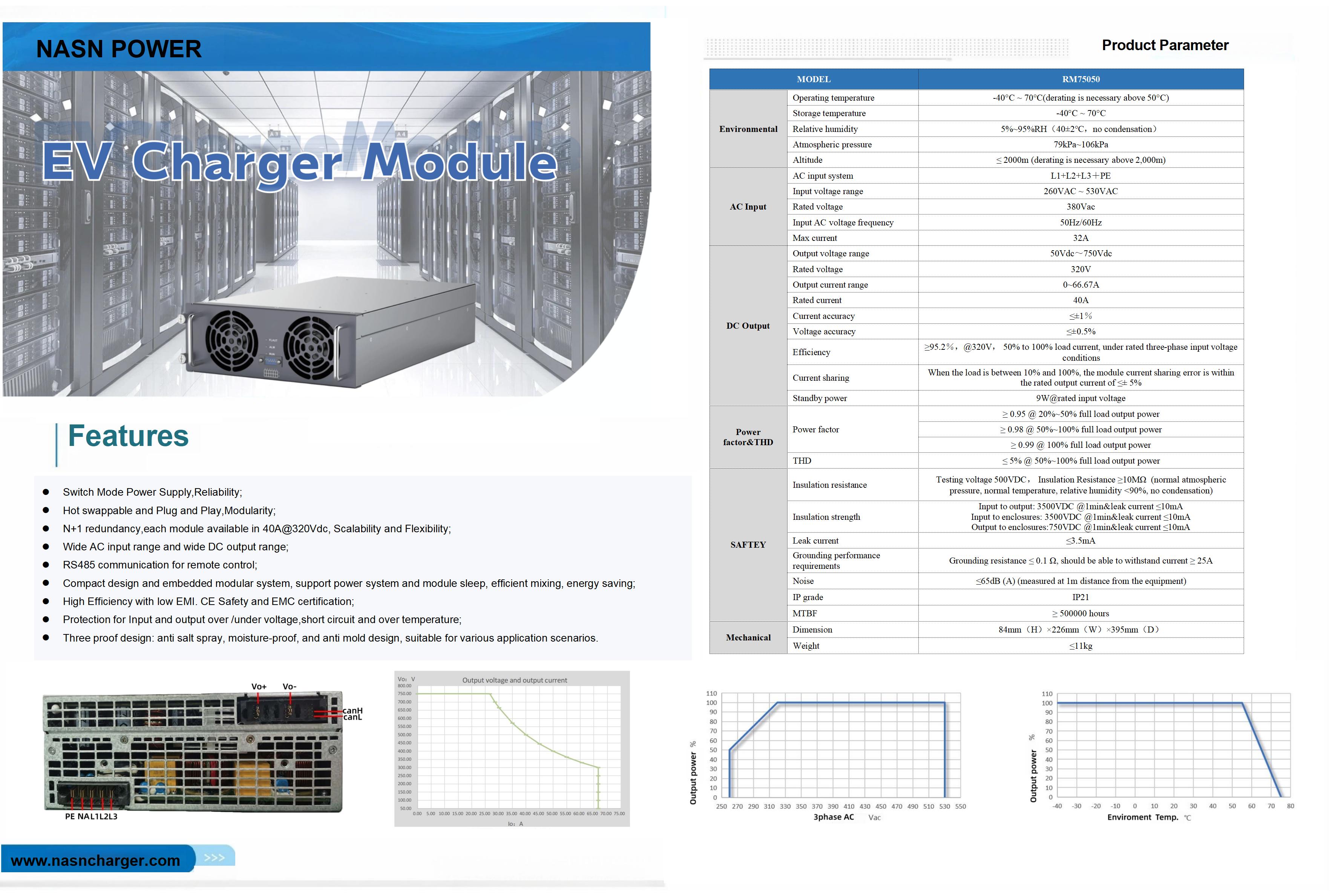

The Charging Module is the core component of a DC charger, often regarded as the device's "heart." It is primarily responsible for converting grid AC power into the DC power required by EV batteries, utilizing a two-stage internal architecture—the PFC Stage and the DC-DC Stage—to precisely regulate output. Currently, the market offers two main types of charging modules: air-cooled and liquid-cooled. Air-cooled Modules rely on air convection; while cost-effective, they have a relatively shorter lifespan.

In contrast, Liquid-cooled Modules utilize coolant for heat exchange. Despite costing 1.5 to 2 times more than their air-cooled counterparts, they offer superior longevity and enhanced thermal performance, making them ideal for high-power scenarios. Driven by the evolution of new energy vehicles, charging modules are evolving rapidly. Firstly, SiC (Silicon Carbide) devices are gradually replacing traditional IGBTs, significantly reducing switching losses. Secondly, designs are adapting to the 800V High-voltage Platform to meet the fast-charging demands of models from brands like Zeekr and XPeng. Furthermore, advancements in Modularization & Standardization facilitate easier parallel configurations of multiple modules. On the intelligence front, modules now support remote monitoring and fault diagnosis, optimizing charging strategies via BMS integration. Ultimately, with the proliferation of Integration of PV, Storage & Charging solutions, modules will better accommodate photovoltaic and energy storage inputs. Coupled with continuous supply chain breakthroughs by local manufacturers, the process of Domestic Substitution  is accelerating, promising a sustained reduction in overall costs.
