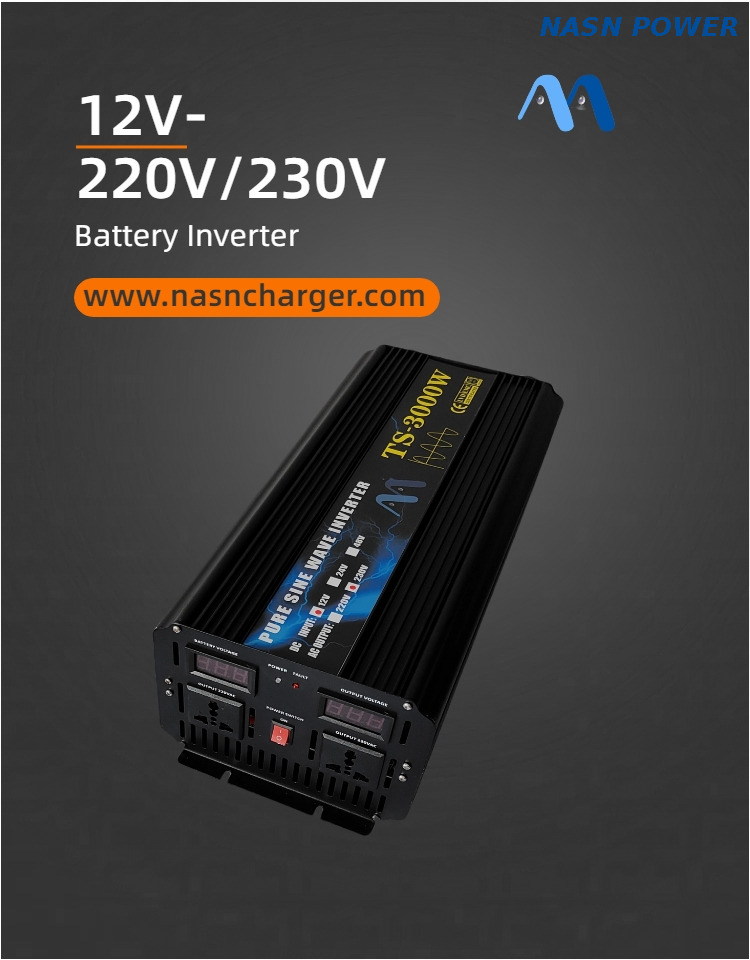

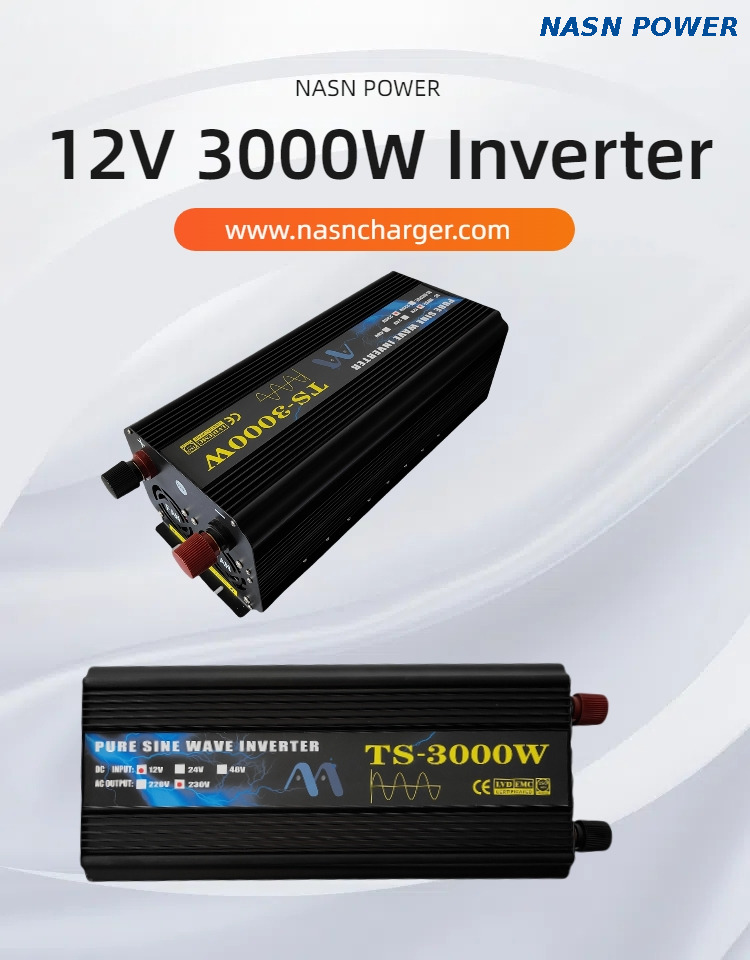

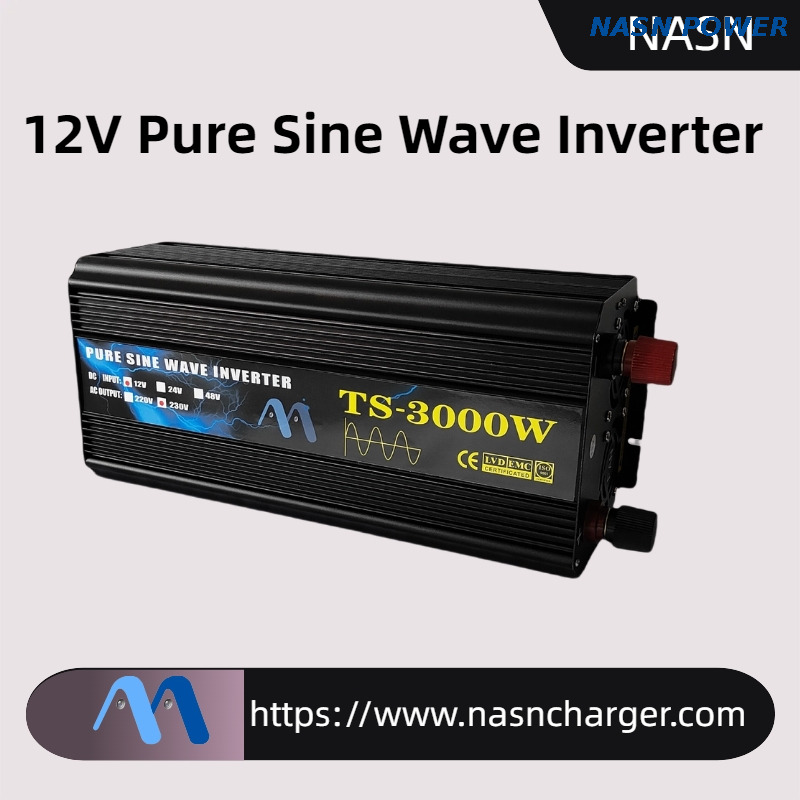

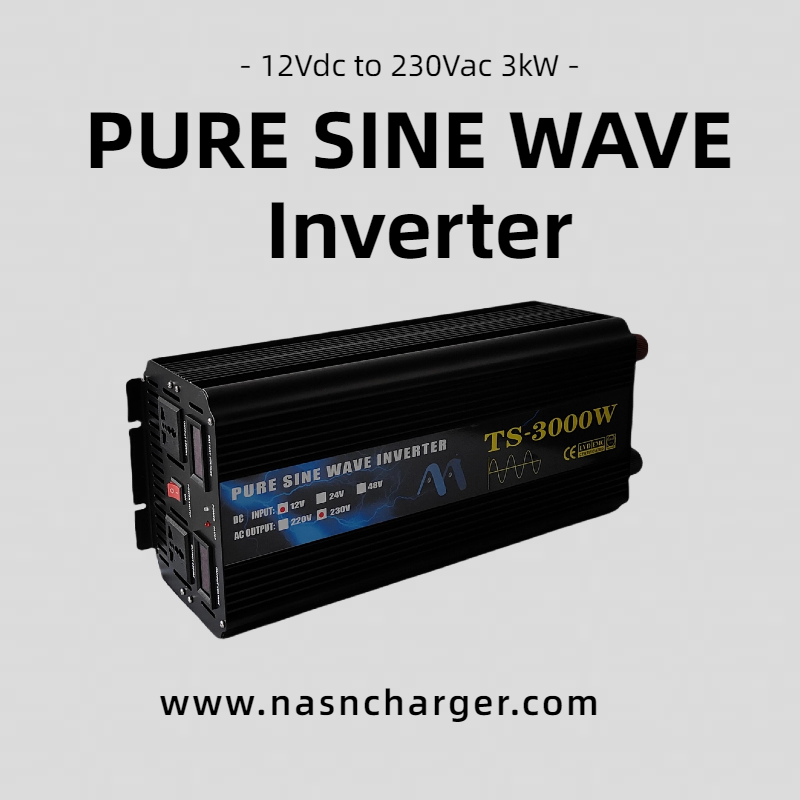

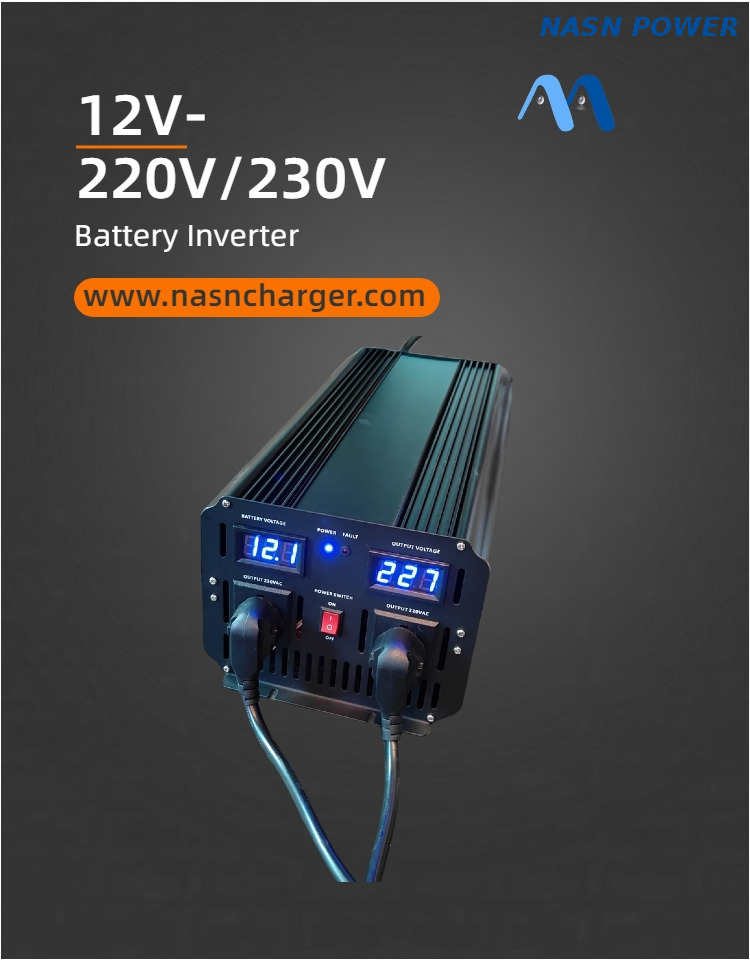

12VDC Pure Sine Wave Inverter

This advanced off-grid inverter integrates inverter, solar charging, and battery management functions into a single compact system. It features dual-rated power output for peak loads, adjustable voltage and frequency settings, and compatibility with multiple battery types. The intuitive LCD display allows easy control of parameters like charging modes, input range, and priority settings, making it a versatile and reliable solution for uninterrupted power needs.

Features

• Delivers pure sine wave output, ensuring compatibility with sensitive electronics.

• Configurable battery charging options through an intuitive LCD interface.

• Switchable AC or solar charging priority for optimal energy utilization.

• Supports operation with mains electricity or generator power seamlessly.

• Automatically resumes operation when AC power is restored.

• Comprehensive protection against overloads, overheating, and short circuits.

• Intelligent charging design enhances battery performance and longevity.

• Low standby power consumption with energy-saving modes.




  Model	TS-1000W	TS-2000W		TS-3000W		TS-4000W	TS-5000W
  Input
  Battery voltage	12V/24V/48V	12V/24V/48V		12V/24V/48V		24V/48V	24V/48V
  Output
  Power	1000W	2000W		3000W		4000W	5000W
  Voltage	220V±5%
  Frequency	50/60Hz
  Waveform	Pure sine wave
  Output voltage regulation	210V-240V
  Efficiency	≥85%
  Protection
  Input protection	Short circuit protection, overload protection, over heat protection, battery low voltage protection, battery over voltage protection, battery low voltage warning.
  Load Capacity
  Resistive load	Less than 1KW	Less than 2KW		Less than 3KW		Less than 4KW	Less than 5KW
  	Less than 12V 3000W 2500W                Less than 24V 6000W 5000W
  Inductive load	Less than 350W	Less than 750W		Less than 1100W		Less than 1500W	Less than 2000W
  Alarms
  Low battery alarm	Audible alarm - Continuous beeps
  Overload alarm	Audible alarm - Continuous beeps
  Fault alarm	Audible alarm - Continuous beeps
  Environment
  Temperature	-5℃-40℃
  Humidity	0-90  non-condensing
  Noise	＜60dB
  Dimensions
  Size (L*W*H mm)	390×180×140mm					450×180×140mm
  Packaging (L*W*H mm)	490*450*570mm/4PCS; 480*210*263mm/pcs
  Weight (kg)	4.50	5.00		5.50		6.90	8.00
