48VDC Rectifier Solar Hybrid Telecom System

Name: 48VDC Rectifier Solar Hybrid Telecom System
Brand: NASN
Rating: 5.0 (39 reviews)

Brand:
NASN

Availability:



Inquire

Product Description

NASN POWER 48V hybrid telecom rectifier has solar input than normal AC/DC rectifier, which is not sole dependency on the grid, resulting in extended power during power cuts.

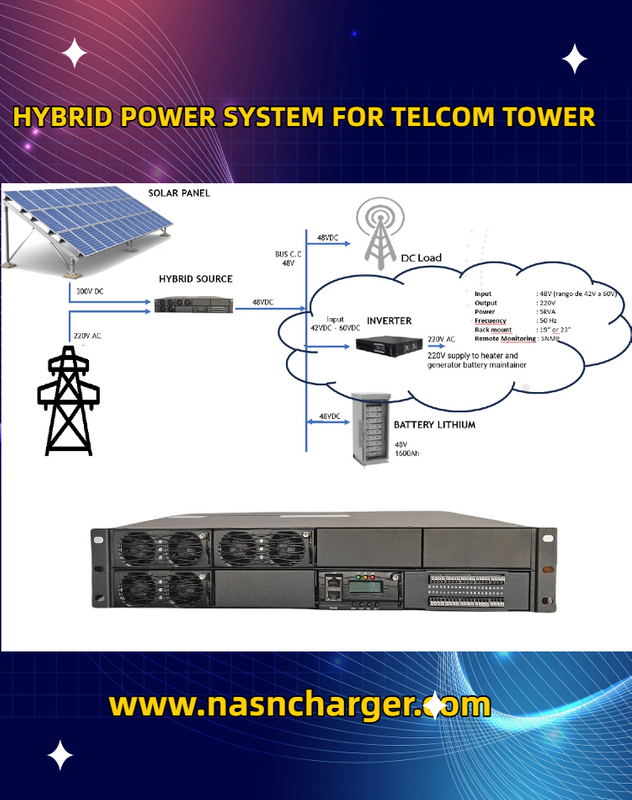

Solar and battery working together in order to back up power supply for telecom device is designated as a Hybrid telecom rectifier system. PV is prority and 2nd is the battery, 3rd is grid. Or PV is prority and 2nd is grid and 3rd is battery.

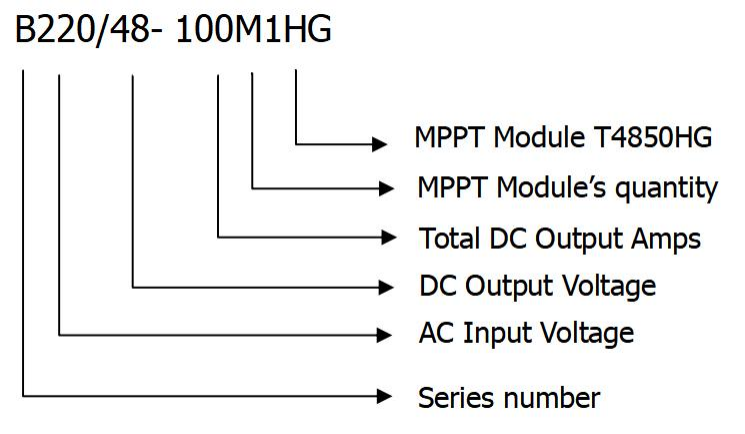

48V hybrid型号

MODEL			B220/48-100M1HG	B220/48-150M1HG	B220/48-200M2HG	B220/48-250M2HG

Configuration			1pcs 48V/50A module +1pcs T4850HG module	2pcs 48V/50A modules +1pcs T4850HG module	2pcs 48V/50A modules +2pcs T4850HG modules	3pcs 48V/50A modules +2pcs T4850HG modules
Environmental	Operating temperature		-20°C ~ 55°C
	Storage temperature		-40°C ~ 70°C
	Relative humidity		5%~95%RH（40±2℃，no condensation）
	Atmospheric pressure		62kPa~106kPa
	Altitude		≤ 2000m (derating is necessary above 2,000m)
Input	Rated input voltage		AC: 220VAC / PV: 120~340VDC
	Input voltage range		AC: 85~300VAC / PV: 120~400VDC
	Input AC voltage frequency		45Hz ~ 65Hz
	THD		＜5% （@230Vac，full load）
	Power factor		≥ 0.99
DC Output	Rated output voltage		48VDC
	Adjustable output voltage		40VDC-60VDC continuously adjustable
	System output current	AC/DC	50A	100A	100A	150A
		DC/DC	50A	50A	100A	100A
	System load regulation		≤±0.5%
	System voltage		≤±0.5%
	System stability		≤±0.5%
	Efficiency		≥ 93.2%
	Current sharing		module current sharing not more than ±5％
	Weighted noise		≤ 2mV (300Hz ~ 3400Hz)
	Output distribution		MCB optional
Rectifier module unit	Rectifier hot-swap		Hot-swap available.not influencing system operation
	Rectifier indication		with operation.alarm.and fault indicators
	Soft start time		3s-10s
	Installation method		support swappable
	rectifier fault influence		Not influencing the set parameters of rectifier when rectifier at fault
Monitor module unit	Remote monitoring		With remote metering & remote control & remote signaling functions. providing standard RS485&SNMP Interface and 6 +6 DI/DO of the dry contact output port & Battery Temp.Sensor
	Language		Default: English
	Remote control		rectifier start and close.battery test. equalize and float charging ,DIN /DO configuration and so on
	Alarm functions		With AC over voltage/under voltage.DC voltage over/under.module Communication fault and over temperature alarm,Battery remove,Surge and so on
SAFTEY	Insulation resistance		Testing voltage 500VDC， Insulation Resistance ≥10M (normal atmospheric pressure, normal temperature, relative humidity <90%, no condensation)
	Insulation strength		Input to output: 3500VDC @1min&leak current ≤10mA Input to enclosures: 3500VDC @1min&leak current ≤10mA Output to enclosures:750VDC @1min&leak current ≤10mA
	System leak current		≤3.5mA（230Vac input）
	Grounding performance requirements		The system with operating ground and protection ground.with clear mark.the resistance between the enclosures of distribution and all palpable metal components and grounding nut is not more than 0.1Ω
	AC lightning protection		The equipment AC side can bear simulated lightning impulse Current of waveform 8/20μS and rated amplitude 40kA.(Optional)
	Noise		≤55dB (A) (measured at 1m distance from the equipment)
	MTBF		≥ 100000 hours

Features:

1. Switch Mode Power Supply;

2. Hot swappable and Plug and Play;

3 .N+1 redundancy,each module available in 50A@48Vdc;

4 .AC /DC distribution system for AC input/ DC output distribution and protection;

5.RS232, RS485, SNMP communication for remote control;

6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;

7.High Efficiency with low EMI. CE Safety and EMC certification;

8.Protection for Input and output over /under voltage,short circuit，Surge protection and over temperature.

9.DC earth fault detec function
