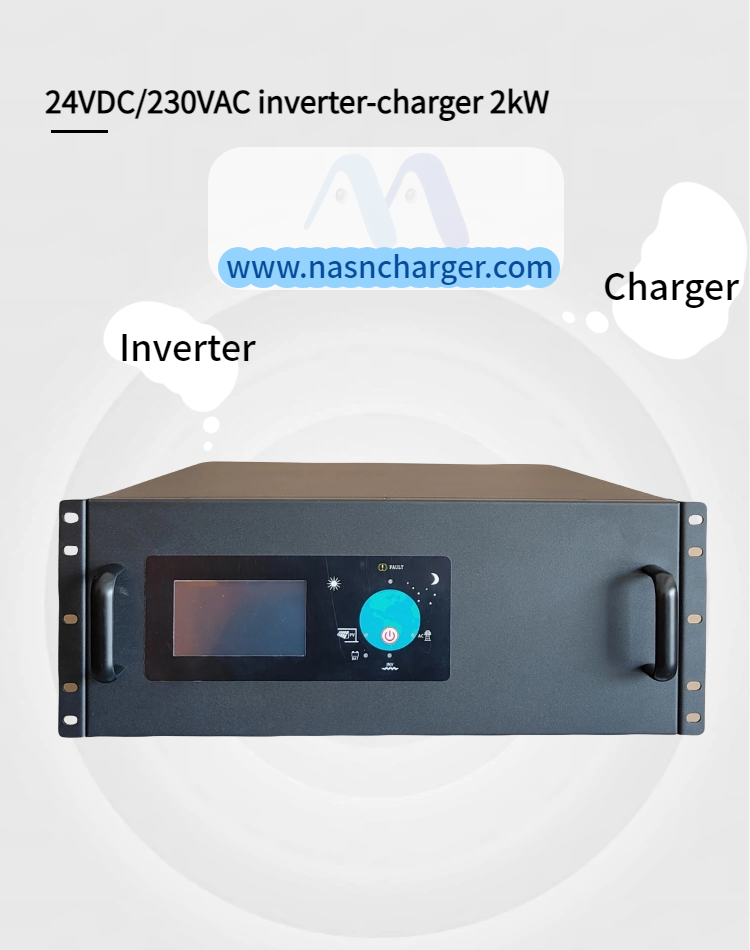

TK24-2KX,TK24-3KX
NASN POWER
TK24-2KX,TK24-3KX
30A
3KW
80A
＞90%
Feature:
l Comprehensive circuit and load protections over-current,
l Auto restart when AC in recovering；
l Toroidal power transformers design；power frequency transformer with high efficiency；
l User-friendly Status and Diagnostic LCD/LED displays, easy to operate；
l Utility bypass function with fast load transfer switch；
l Remote Power Management optional via RS-232/RS485 port；
l Optional three working modes: AC mains first, DC inverter first, pure DC inverter；
l Optional solar MPPT charging function.
| MODEL | TK24-2KX | TK24-3KX | |
| Power rating | 2kW | 3kW | |
| DC input | Rated voltage | 24VDC | |
| Overdischarge protection voltage | 21VDC | ||
| Battery type | Lead-acid or LiFePo4 | ||
| AC Input | AC input system | L＋N＋PE/220Vac | |
| Input voltage | AC 220V/230V ±5% | ||
| AC frequency | 50Hz /60Hz±5% | ||
| AC charge current | 10A -30A(MAX) | ||
| Power factor | 1 | ||
| MPPT controller (optional) | Input of MPPT | 1 | |
| MPPT voltage range | DC 60~180 | ||
| Recommended operating voltage | 110vdc | ||
| Max. input voltage(Vdc) | 230Vdc | ||
| Rated current | 60A | ||
| Voltage of boosting charge | 28.4V/24V | ||
| Voltage of direct charge | 27V/24V | ||
| Efficiency | ≥96.5% | ||
| Inverter output | AC output Voltage | 220VAC：±5%(inversion mode) | |
| AC Output frequency | 50/60HZ：±1%( inversion mode) | ||
| AC Output waveform | >90% | ||
| Efficiency | 220VAC：±8%(inversion mode) | ||
| Overload | 101%-120%/30s:>160%/300ms | ||
| Protection function | Battery overvoltage protection, battery undervoltage protection, overload protection,short circuit protection, overtemperature protection,etc. | ||
| Switching time | 0～5ms | ||
| Isolation mode | Power frequency transfomer | ||
| General | Language | Default: English | |
| LCD screen | Touch screen 4.3'' | ||
| Ambient temperature for operation | 0～40℃ | ||
| Ambient temperature for storage | -15～+50℃ | ||
| Relative humidity for operation/storage | 0～90%(no condensation) | ||
| Dimensions: D×W×H(mm) | 482.6*485*177 | ||
| Package size:D×W×H(mm) | 59*63*29 | ||
| Net Weight(KG) | 40 | ||
| Gross Weight(KG) | 44 | ||
| IP grade | IP21 | ||
