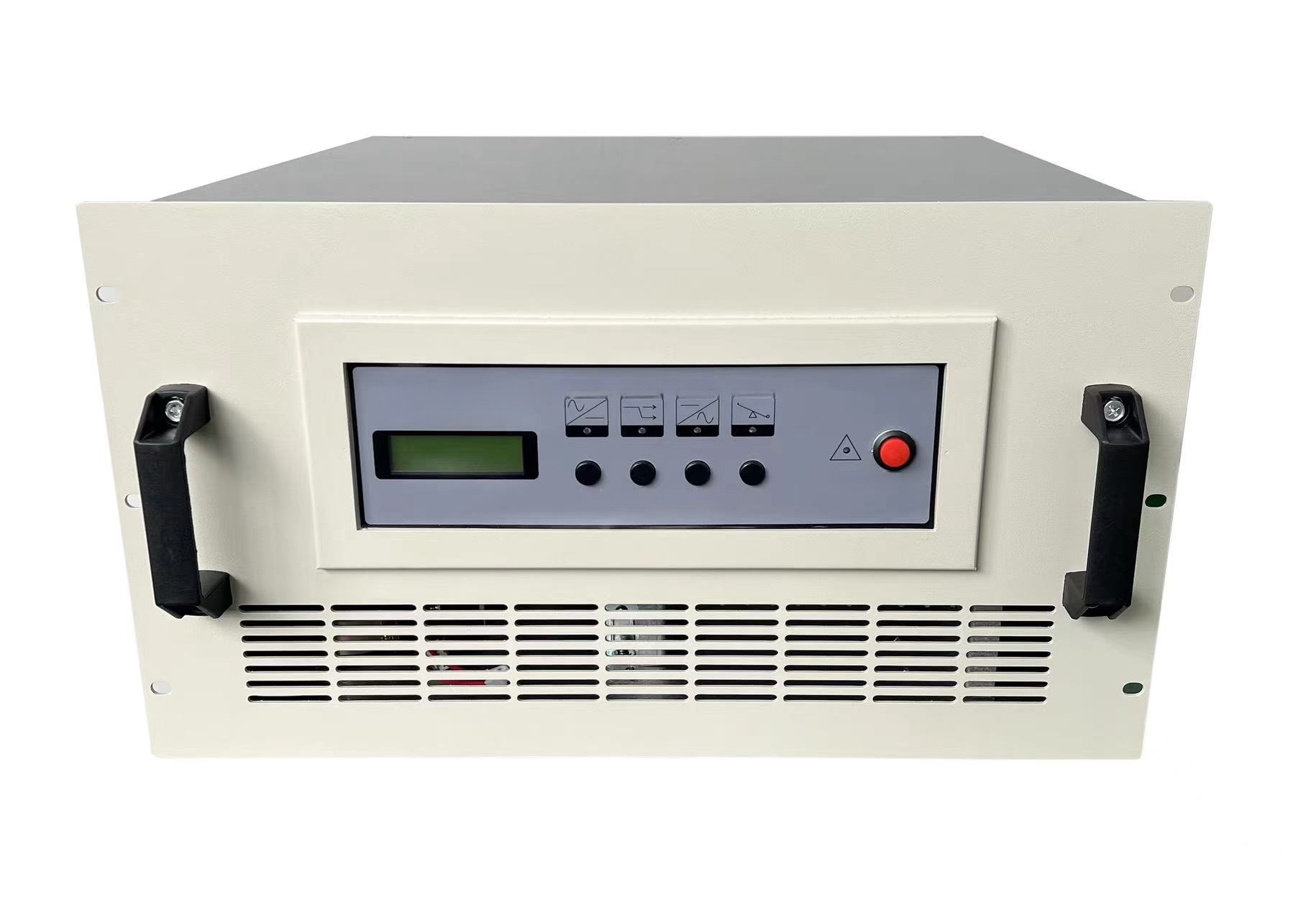

110VDC TS Series Industrial inverter charger

Share to:

110VDC TS Series Industrial inverter charger

Name: 110VDC TS Series Industrial inverter charger
Brand: NASN POWER
Rating: 5.0 (52 reviews)

Model:
TS110-XKX
Brand:
NASN POWER
Code:
TS110-XKX
Model:
TS110-XKX
Max Input Current:
30A
Output Power:
2000W
Output Current:
20A
Efficiency:
＞88% (80% resistive load)
Size(mm):
509*469*178
Weight(kg):
12
Output Voltage Range:
220V±2%(210-240V adjustable)
Input Voltage Range:
145-286V AC

Availability:



Inquire

Product Description

MODEL		TS110-XKXC
Rated capacity(VA)		3K	5K	6K	8K	10K	12K	15K
DC input	Rated DC Voltage (Vdc)	110Vdc
	DC Output Range (Vdc)	110Vdc -18%~+25%
	Input refleoted noise	Input voltage and load current at rated value:<10%.
AC input	Rated input voltage (Vac)	220/230/240 Vac
	Input Voltage Range	145-286V AC
	Phase	single phase, three-line
	Input frequency range	50HZ±10%
AC output	Rated capacity (VA)	3K	5K	6K	8K	10K	12K	15K
	Rated output power (W)	2400	4000	4800	6400	8000	9600	12000
	Output voltage	220V±2%(210-240V adjustable)
	Output frequency precision (Hz)	50HZ±1% (Inverted output)
	Waveform	Pure sine wave
	Total harmonic distortion (THD)	<3% (linear load)
	Dynamic response time	≤30ms
	Power factor (PF)	0.8
	Conversion time	<0ms
	Efficiency	＞88% (80% resistive load)
	Power transformer	Built-in		External transformer
	Protection	DC anti-reverse connection, over-under-voltage; utility input over-under-voltage; output overload, short-circuit; over-temperature and other protection
Working environment	Dielectric strength (input and output)	1500Vac, 1 minute
	Noise (1m)	≤50dB
	Operating environment temperature	-20℃~+50℃
	Humidity	0~95%, no moisture condensation
	Operating altitude (m)	≤1500
Interface And Communication	Human Machine Interface	LCD
	Communication interface	RS485
	Dry contact	Inverter state, bypass state, fault+AC abnormality, DC abnormality, device overload+backup
Mechanical size(mm)	Standard rack	4U
	(Depth * Width *Height)	509469178
