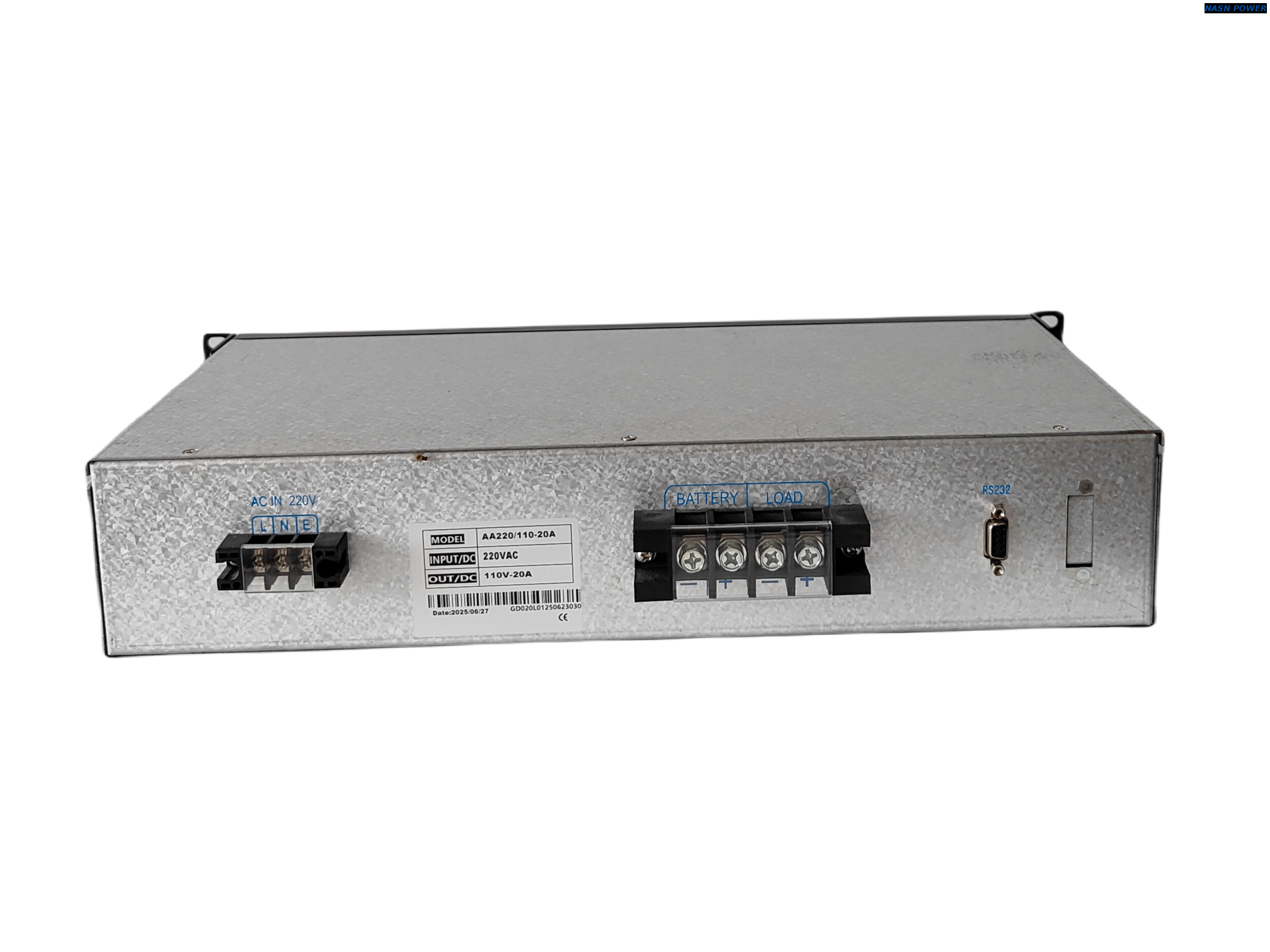

110VDC 125VDC 20A battery charger

Environmental

Operating temperature

-10°C ~ 45°C

Storage temperature

-40°C ~ 60°C

Relative humidity

10%~95%RH（40±2℃，no condensation）

Atmospheric pressure

62kPa~106kPa

Altitude

≤ 2000m (derating is necessary above 2,000m)

AC Input

AC input system

L＋N＋PE/Single phase 220Vac

L＋N＋PE/Single phase 120Vac

Input voltage range

185VAC ~ 290VAC

85VAC ~ 185VAC

Input AC voltage frequency

50/60±3 Hz

DC Output

Rated output voltage

110VDC

Adjustable output voltage

90VDC-150VDC

Rated current

20A

10A

Power

2500W

1250W

Voltage  accuracy

≤±0.5%

Battery type

Lead-acid battery, gel battery, lithium iron phosphate battery, ternary lithium battery, custom battery, etc

Communication

RS232

Indication

LED display

Charging current, battery voltage, load voltage,etc.

Setting

Float voltage,equalize voltage, charging current etc can be set on LED

SAFTEY

Protect function

Over under voltage protection, over current protection, etc

Cooling

Temperature control wind cooling

IP grade

IP20

Noise

≤65dB (A) (measured at 1m distance from the equipment)

Mechanical size

Weight

8kg

Standard rack

240 × 482 × 88mm

(Depth × Width × Height) (mm)

1. Input and output complete isolation, safety and credibility；

2. Advance current control mode and stable & reliable circuit topological structure；

3. The key parts all adopt the imported components, and main technical indexes are much higher than the national related standards.；

4. All-around protection functions, output over/under voltage, over current, short-circuit and over temperature protection of whole body；

5.Charging voltage and charging current can be set on screen..
