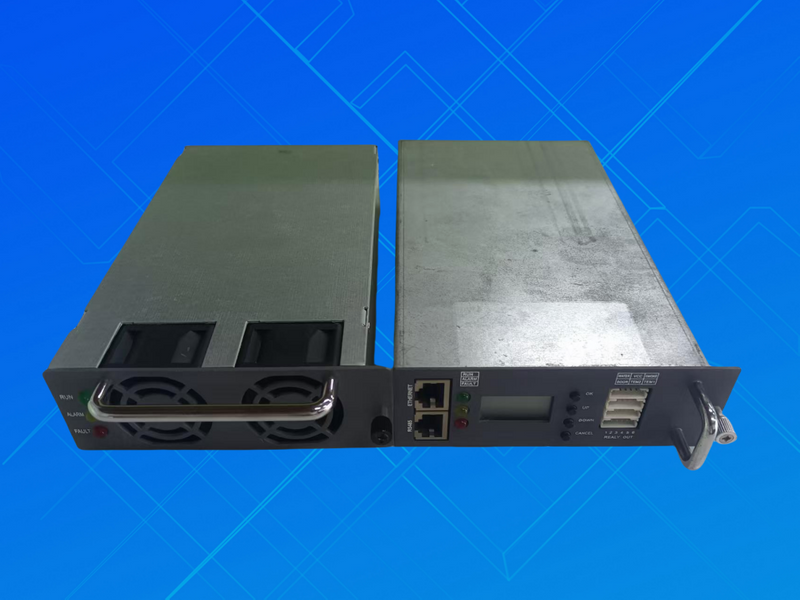

T4812M 48Vdc to 12Vdc DC-DC modular converter

The T4812M rectifier module is specially designed for distributed power systems, and its high power density reduces the size of the product. The high power density and forward airflow design reduce the product volume and increase scalability. The product offers many features, including RS485 interface, which make it have a wide range of application areas. The above characteristics make this product a wise choice for you.

Feature

 10-14V Constant current output

 Output voltage adjustable 10-14Vdc，default value 12V

 Working temperature range：-40～+55℃

 Power factor ≥0.99

 Input overvoltage and undervoltage protection

 Output overvoltage protection

 Output overcurrent protection

 Over temperature alarm and protection

 Parallel operation can be achieved through the current sharing bus

 Remote on/off

 Hot plug

 Comply with UL1 60950、CSA2C22.2 60950-00、VDE30805 IEC60950

 CE4mark, comply with 73/23/EEC and 93/68/EEC

 High efficiency ＞90%

Characteristics

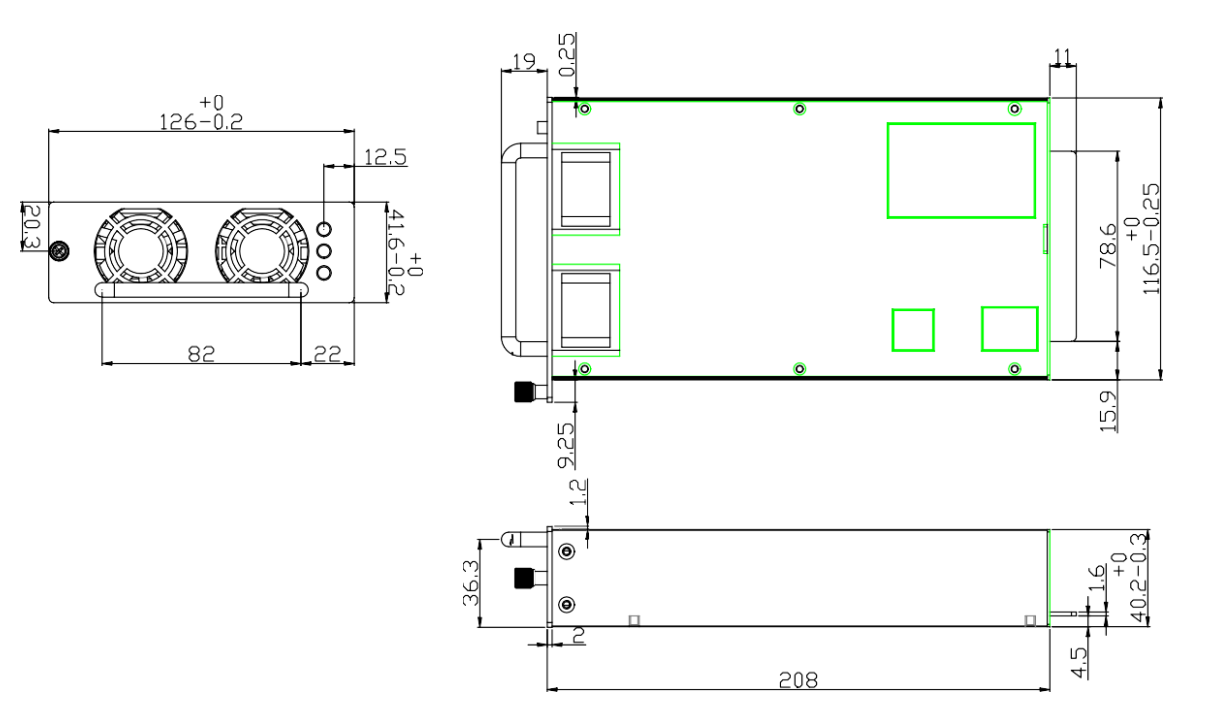

Mechanical

Configue
