Ni-Cd NICKEL CADMIUM Battery Charger DC charger panel

NASN POWER rectifier battery chargers are provided as a reliable DC back-up power  source to ensure uninterrupted operation of essential substation equipment,  including but not limited to protection relays, control and instrumentation circuits,  alarm systems, monitoring equipment, communication and SCADA systems, and  other critical auxiliary functions within the electrical power substation.

The battery charger is constant voltage, current limiting type. It shall be of  the voltage-controlled type automatically adjusting the charging current.

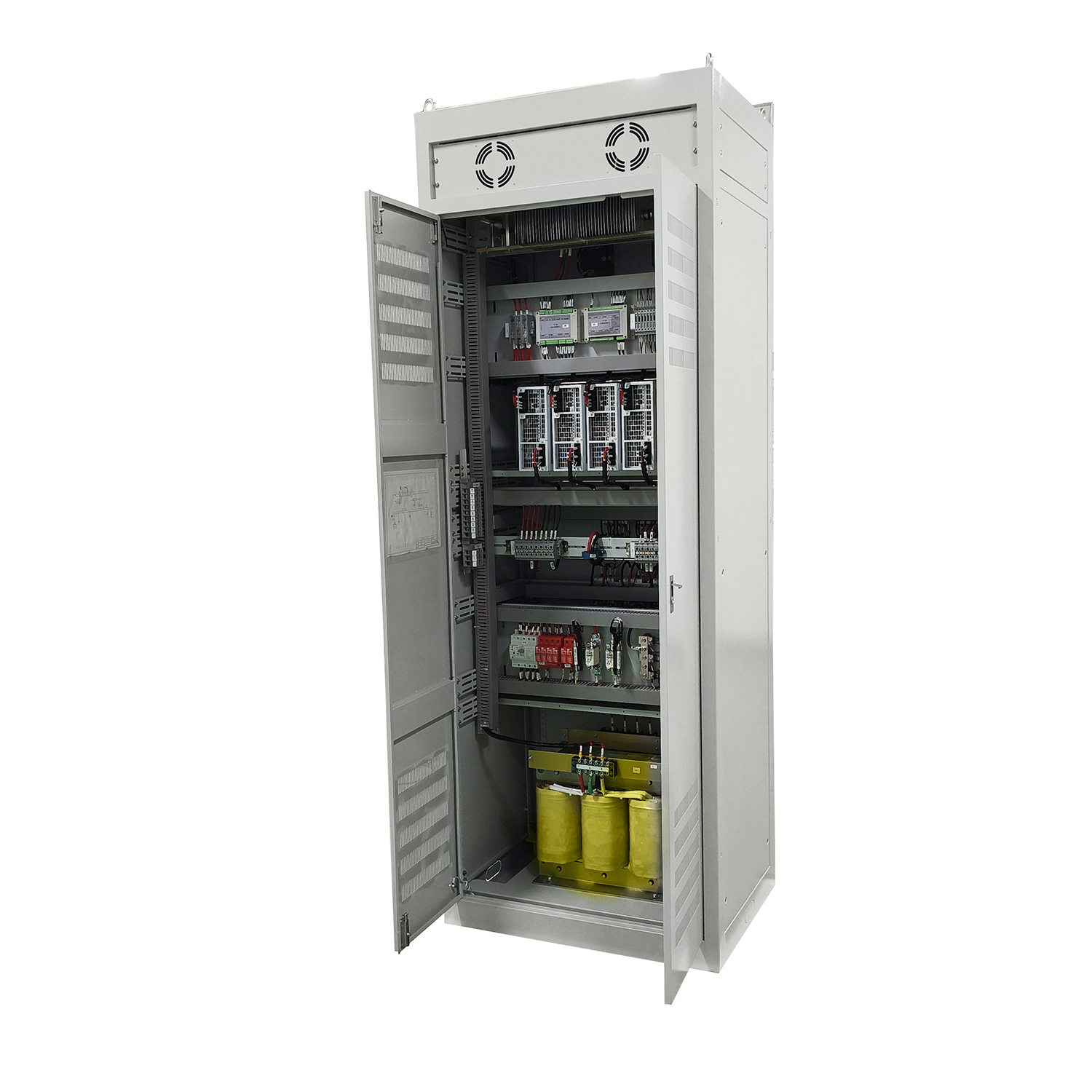

The battery charger is optional with a transformer of suitable rating and design for  the specified auxiliary supply system clearly marked off - circuit tapings is provided on the primary windings, and the change of tapings is by means of  links situated in an accessible position. The transformers is capable of carrying  the specified continuous output on all tapings. The battery chargers is self-protected in the event of continuous overload and  is suitable for re-adjustment to correct for the ageing of rectifiers and other parts.

FEATURES:

• Automatic Current Limiting Overload Protection

• Fully regulated / filtered DC Charger Output

• Float (Trickle) or Equalize (Boost) Charging Operation

• Internal adjustments (potentiometer) for current and voltage settings

• Automatic FLOAT [132 volts DC] and EQUALIZE [138 volts DC] operation.

• Input AC and Output DC Breaker protection.

• Equipped with Dry contact for AC Loss and Charger systems Fail, Batt. Low

• Built-in audible alarm for systems fail (Over & Under Voltage)

• Equipped with DC over voltage cut-off
