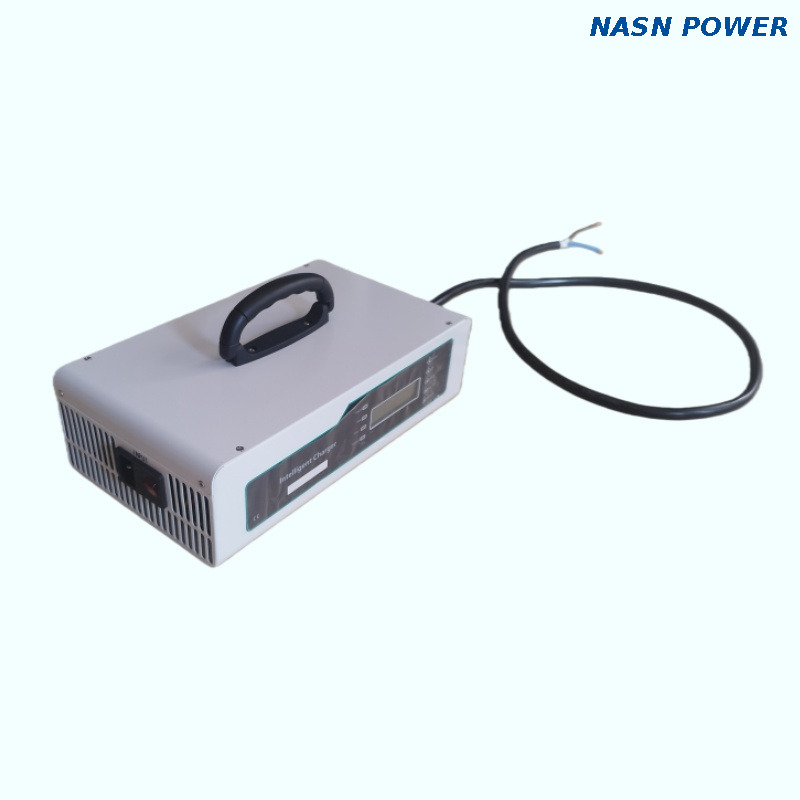

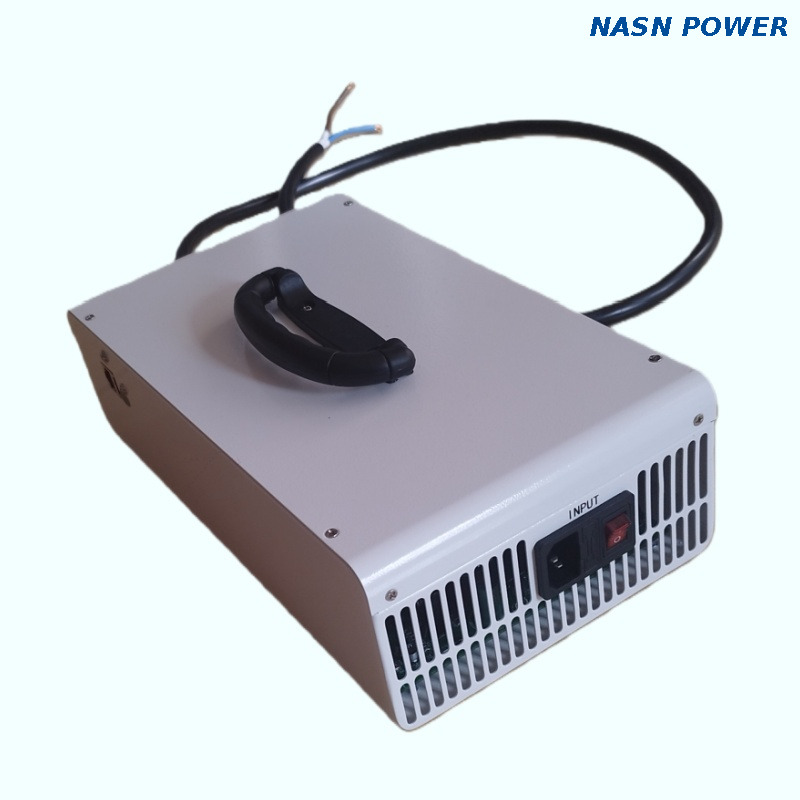

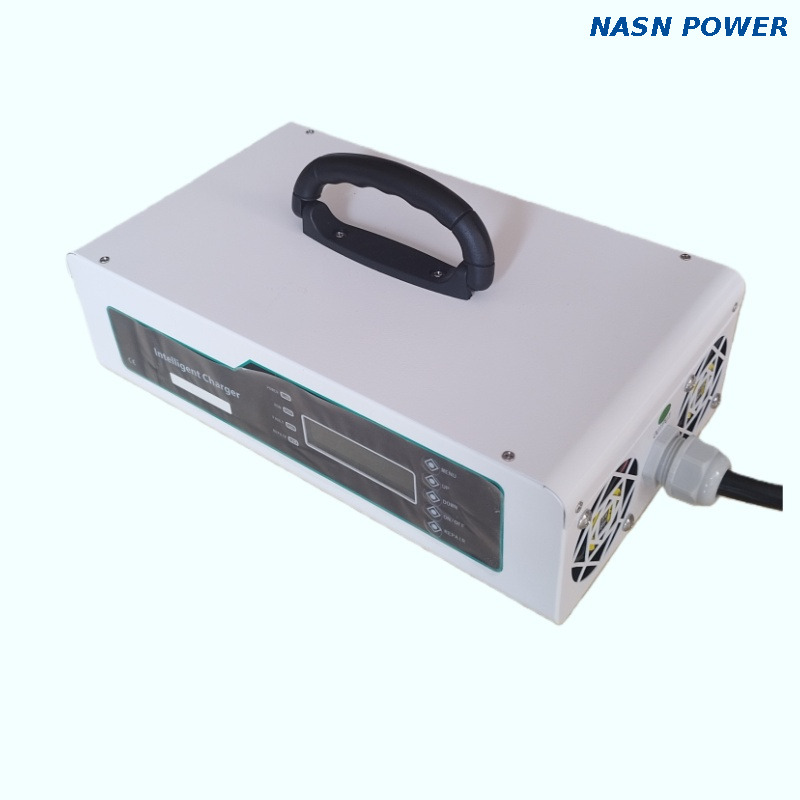

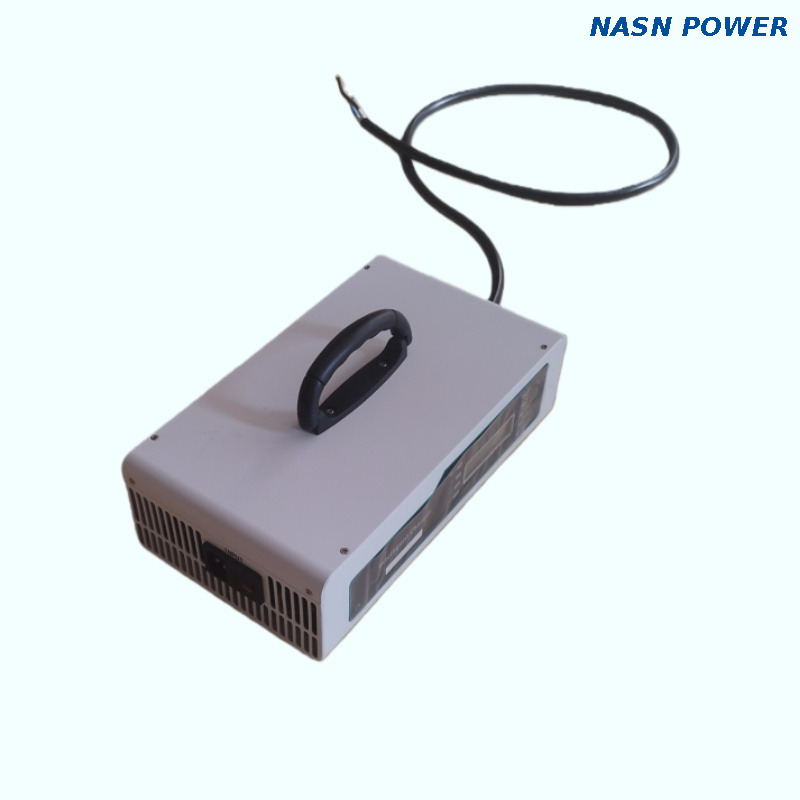

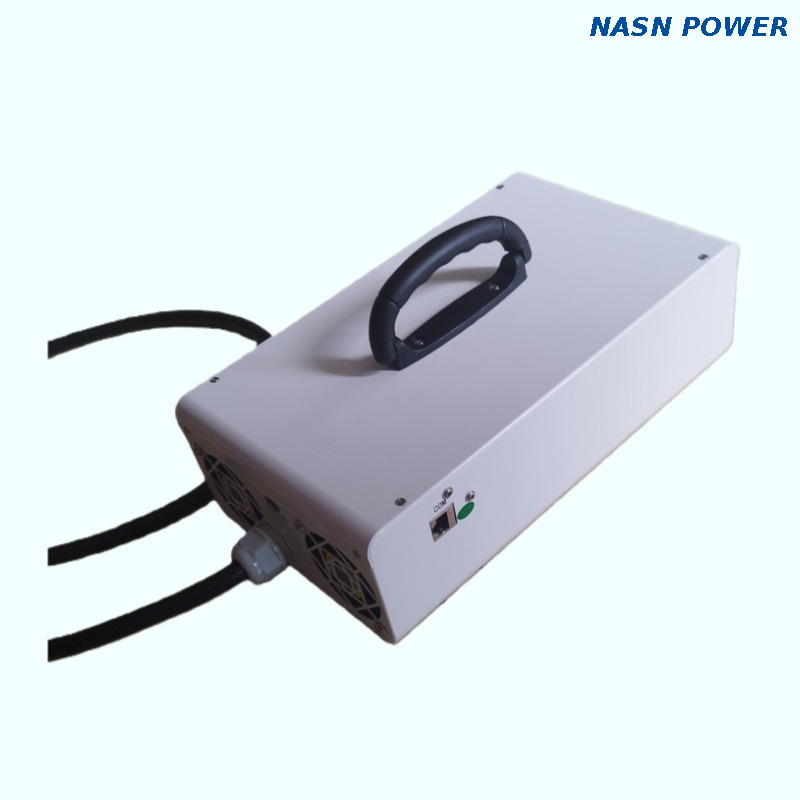

Intelligent Industrial Battery Charger

Intelligent batter charger for charging 48V and 24V batteries with display and repair charging function. Ideal for LiFePO4, AGM, GEL, STD batteries in various types of vehicles e.g. cars, motorbikes, trucks, campers, boats. The 4-stage battery charging mode, recovery charging, constant current charging, boost charging, floating charging, gives better performance and longer battery life.

Model:
NEC-24/50A
Brand:
NASN
Model:
NEC-24/50A

Availability:



Inquire

Product Description

Features:

1) Optimize the battery, fast charging, energy saving and time saving;

2) Small volume, light weight, high efficiency, and stable performance;

3) With over-voltage, over-current, over temperature, reverse connection and other multiple protection, intelligent charging;

4) Intelligent communication, optional GPRS modules to provide remote control charging status;

5) Compatible with lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types;

6) Adopt 4-stage charging: recovery charging, constant current charging, boost charging, floating charging;

7) Repair and charging: each time the charger restarts, first judge whether the battery is under voltage. If the battery is under voltage, activate charging (recovery charging). If the battery is not under voltage, turn into constant current charging, and then enter the boost charging (constant pressure) and floating charging.

Technical datasheet

MODEL		NEC-24/50A
MODEL		NEC-24/50A
Environmental	Operating temperature	-10°C ~ 60°C
	Storage temperature	-40°C ~ 70°C
	Relative humidity	10%~95%RH（40±2℃，no condensation）
	Atmospheric pressure	62kPa~106kPa
	Altitude	≤ 2000m (derating is necessary above 2,000m)
AC Input	AC input system	L＋N＋PE/220Vac
	Input voltage range	198VAC ~ 242VAC
	Input AC voltage frequency	50±3 Hz
	Input current	≤12A
	Transfer efficiency	>80%
DC Output	Rated output voltage	24VDC
	Adjustable output voltage	20VDC-32VDC
	Rated current	≤50A
	Power	≤1440W
	Current accuracy	≤5%
	Voltage accuracy	≤5%
	Battery type	Lead-acid battery, gel battery, lithium iron phosphate battery, ternary lithium battery, custom battery, etc
	Communication	RS485 is standard , GPRS communication module for optional only.
	Connector	N/A
Indication	LED display	Charging current, battery voltage, charging power, fault,etc.
Indication	Setting	Charing voltage and charging current can be set on LED
SAFTEY	Protect function	Over under voltage protection, over current protection, over temperature protection, anti-reverse connection protection, etc
	Cooling	Fan cooling
	IP grade	IP20
	Noise	≤65dB (A) (measured at 1m distance from the equipment)

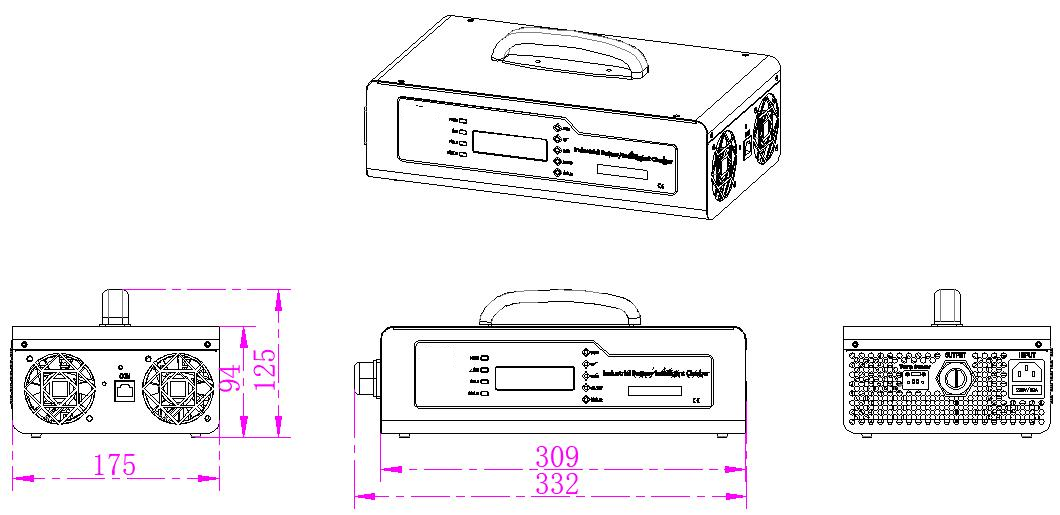

Mechanical size	Standard rack	331x175x 90

Mechanical
