Dual 220VAC Input 125VDC Battery Charger

Dual 220VAC input to 125VDC battery chargers are specialized power systems designed for critical infrastructure, such as power substations, utility, oil & gas, and industrial automation. The chargers feature high-frequency switching technology to provide reliable charging and N+1 redundancy.

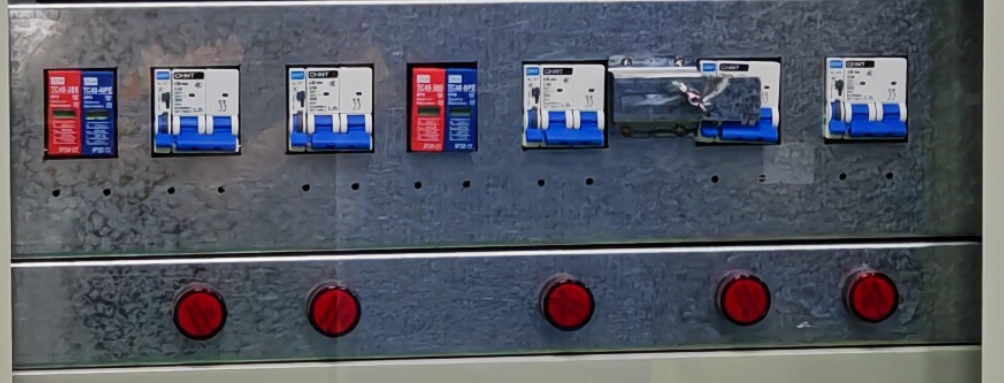

The 125Vdc 80A battery rectifiers  are designed  for redundancy with two indepantent of  125V 40A battery charger in one panel, but the operation will be one at a time and has a mechanical interlock connection that once the one battery charger will low battery,you can switch to the other one.

FEATURES:

• Automatic Current Limiting Overload Protection

• Fully regulated / filtered DC Charger Output

• Float (Trickle) or Equalize (Boost) Charging Operation

• Internal adjustments (potentiometer) for current and voltage settings

• Automatic FLOAT [132 volts DC] and EQUALIZE [138 volts DC] operation.

• Input AC and Output DC Breaker protection.

• Equipped with Dry contact for AC Loss and Charger systems Fail, Batt. Low

• Built-in audible alarm for systems fail (Over & Under Voltage)

• Equipped with DC over voltage cut-off
