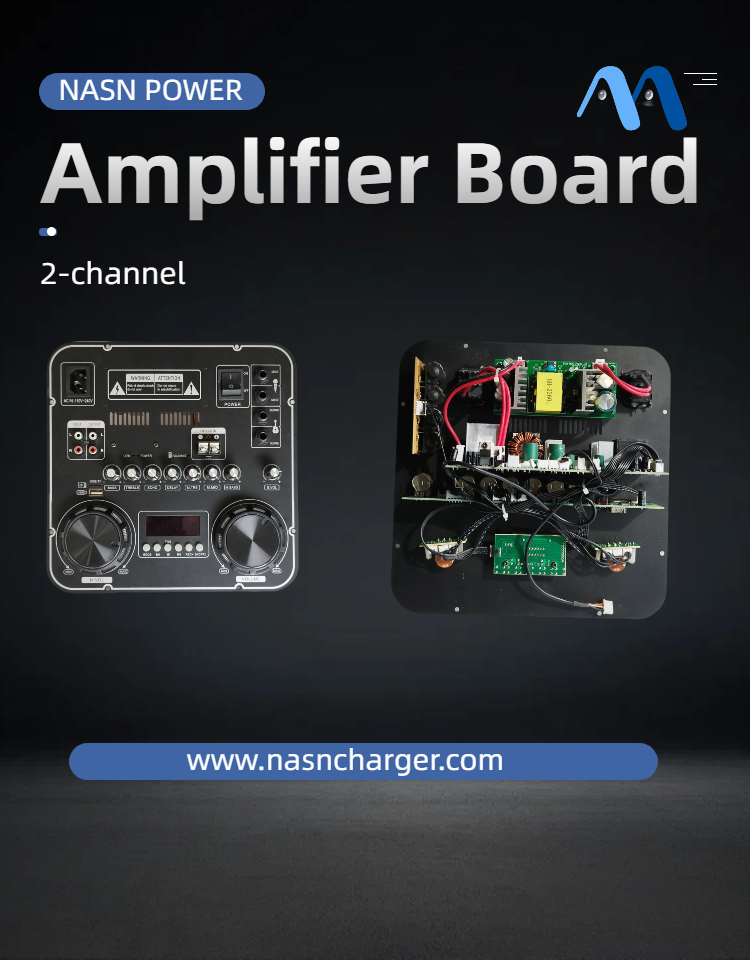

This powerful board delivers 100W+100W of audio output, perfect for driving speakers in various applications. 2 x 100W All-in-one Amplifier Board with DSP and Bluetooth is portable and easy to use. 2.0 channel is perfect for music enthusiasts on the go.With 24V power supply, offering dual-channel 100W output for wide amplification. Digital power amplifier board is widely applicable to LCD TVs, speakers, AM/FM system and so on.
FEATURE
Type: Class D Stereo Amplifier Board
Output Power: 100W+100W
Main chip: TPA3116+TPA3116
Supply Voltage: 22~24Vdc
Item | MODEL NO | D3116 |
AC input | Input Type | Single phase |
Rated Voltage | 220Vac | |
Frequency | 50Hz | |
Output | Board type | 2-Channel Mono Amp |
Power | 100W+100W | |
Efficiency | 93% | |
User Interface | THD | 1% |
Audio input | Bluetooth,USB,Line in | |
Microphone,Guitar | ||
Display | Digital tube screen | |
Function | Recording, microphone priority etc | |
Safety | Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection |
Environment | Application | Portable speaker systems |
Operate Temperature | -30℃ ~ +50℃ | |
Operate Humidity | 95%，Non-condensing | |
Dimension | 254*254mm |
