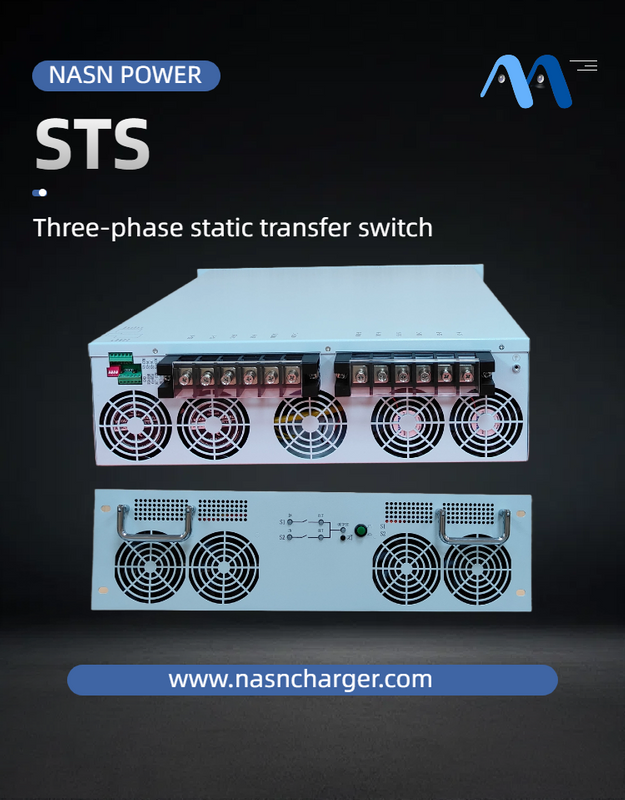

3phase 380Vac/230Vac Static transfer switch 25A~200A

Product name:AC AC Telecom Converter
Applicaiton: used for telecommunication power supply, which provides stabel AC output from AC input.
Features: DC Converter to DC;DC DC Telecom Converter
Voltage regulator, high precision, fast response, low noise, strong anti-jamming.
Protection functions, with RS232 communication interface.
Clear and intuitive display the voltage value, current value.
High-frequency pulse width modulation technology, high efficiency.

Brand:
NASN
Model:
STS25TM,STS32TM,STS45TM,STS63TM,STS100TM,STS160TM,STS200TM

Availability:



Inquire

Product Description

1.Feature

1. Adopting fully digital control, with strong anti-interference ability and fast operation speed

2. Switching time ≤ 8ms, high reliability;

3. Strong overload capacity, able to withstand full load startup;

4. Equipped with input overvoltage, undervoltage, overcurrent and other protection functions;

5. The front panel is equipped with a display screen and indicator lights to intuitively understand the STS status information;

6. Provide STS versions that can switch between live and zero lines simultaneously, with identical appearance, structure, and performance.

2.Model description

STS63 T M

1 2 3

(1)STS63: represents the STS rated output current of 125A, this series of STS includes 25A/32A/45A/63A / 100A / 160A. Customers can customize the current specifications.

(2)T: Three phase.

(3)M: LCD display, blank is no display, STS 125 series STS by default no display.

The main models of the STS 125 series static converter switch are shown in the following table:

model	Rated output current (A)	Rated input voltage(VAC )
STS25TM STS25T	25	380
STS32TM STS32T	32	380
STS45TM STS45T	45	380
STS 63TM STS63T	63	380
STS 100TM STS100T	100	380
STS160TM STS160T	160	380

3. main technical parameters

Items		Technical Parameters
Switch time	Priority switching	≤8m s
AC INPUT	Rated voltage (VAC)	380
	Input voltage range (VAC)	340～420
	rated frequency (Hz)	50/60
	Load peak factor	3:1
	Auto convert threshold voltage	≤ 340Vac ± 5Vac or ≥420Vac ± 5Vac
	Auto convert threshold frequency	≤45Hz±0.2Hz or ≥65Hz±0.2Hz
	Over-limit protection shutdown threshold voltage	340Vac or420Vac, return ± 5V
	Over-limit protection shutdown threshold frequency	45Hz or 65Hz, with differential ± 0.2Hz
	overload capacity	Load current is 110%, operating continuously Load current> 110%, immediately shut-off;
Environment	insulation strength	2KVAC，1min
	Noise (1m)	≤55dB
	operating ambient temperature	-25～50℃
	Transport and storage temperature	－40～70℃
	humidity	0~90%, with no condensation
	levels of protection	IP20
	height (m)	≤3000 2000～3000m Output reduction of 2% per 100m increase
defencive function		Input under voltage, over voltage protection, output overload protection, over temperature protection, short circuit protection

MODEL		STS25T	STS32T	STS45T	STS63T	STS100T	STS160T	STS200T
Switch Time	Priority switching	≤10ms
	Power off switching	4ms
Input	Rated Voltage(VAC)	3 phase 230
	Input Voltage Range(VAC)	175～260
	Rated Frequency（Hz）	50 Or 60
	Power factor (PF)	1
	Automatic conversion threshold voltage	Undervoltage：175Vac±5Vac；Overvoltage：260Vac±5Vac
	Automatic conversion threshold Frequency	Lower than：45Hz±0.2Hz；Higher：65Hz±0.2Hz
	Over limit protection shutdown threshold voltage	≤175Vac or ≥260Vac，±5V
	Over limit protection shutdown threshold Frequency	≤45Hz or ≥65Hz，±0.2Hz
	Overload capacity	Continuous working @Load current≤110％; shut off @load current＞110%
Output	Rated output current(A)	25	32	45	63	100	160	200
	Max output current（A）	35	35	48	66	102	165	205
	Rated output voltage (VAC)	230
	Output power (VA/W)	16454	21000	29000	41000	65000	100000	130000
	Switch mode	3 phase / 4 pole
Working Environment	Dielectric strength	2KVAC，1min
	Noise（1m）	≤60dB
	Cooling	Force air cooling. The air inlet is in the front panel, and the air outlet is located in the back panel of the chassis.
	Communication	Standard RS485; Optional CAN
	Working Temperature	-25～40℃
	Storage Temperature	-40～70℃
	Humidity	0～90%，No condensation
	Protection Degree	IP20
	Altitude（m）	≤3000
		2000～3000m；Output derate by 2% for every 100m increase
Indication	LCD display	Standard model without LCD screen
Mechanical size	Standard rack	428.548288		440482133				440482220
	(Depth × Width × Height) (mm)
Weight	kg	13KG		20KG~40KG				45KG
Protection function		Input undervoltage and overvoltage protection, output overload protection, over temperature protection, short circuit protection

4. Application

◆ Power plant/power dispatch center;

◆ Air traffic control/satellite communication broadcasting;

◆ Safety and Process Control in the Nuclear Industry;

◆ Financial Industry Computer Center;

◆ E-commerce Data Processing Center;

◆ Information Center for Large and Medium sized Industrial and Mining Enterprises;

◆Hospitals and Healthcare Facilities;

◆Semiconductor Manufacturing;

◆Telecommunications;

◆Any facility relying on distributed generators and sensitive electrical equipment.
