Ground Fault Protection in Distribution Systems — Zero-Sequence Current Protection vs. Residual Current Protection (RCD)

In low-voltage power distribution systems, ground faults are among the most common and hazardous electrical problems—potentially causing insulation damage, electric shock, or fire. The two primary methods for detecting ground faults are Zero-Sequence Current Protection​ and Residual Current Protection (RCD – Residual Current Device, also called Earth Leakage Protection). Though related in principle, they differ significantly in sensitivity, applicability, and protective capability.

1. Basic Principles

Zero-Sequence Current Protection:​ Monitors the vector sum of the three phase currents, Io = Ia + Ib + Ic. Under balanced conditions Io ≈ 0. A single-line-to-ground fault creates an imbalance, producing a detectable zero-sequence current that triggers protection. It is typically used on three-phase circuits only.

Residual Current Protection (RCD):​ Measures the vector sum of all line (L1/L2/L3) and neutral (N) currents, IΔ = Ia + Ib + Ic + In. Under normal operation, incoming and outgoing currents cancel, leaving only a few milliamps of harmless leakage. Any earth leakage or ground fault makes IΔ ≠ 0, causing the RCD to trip. This is the standard "leakage circuit breaker" found in residential and commercial panels.

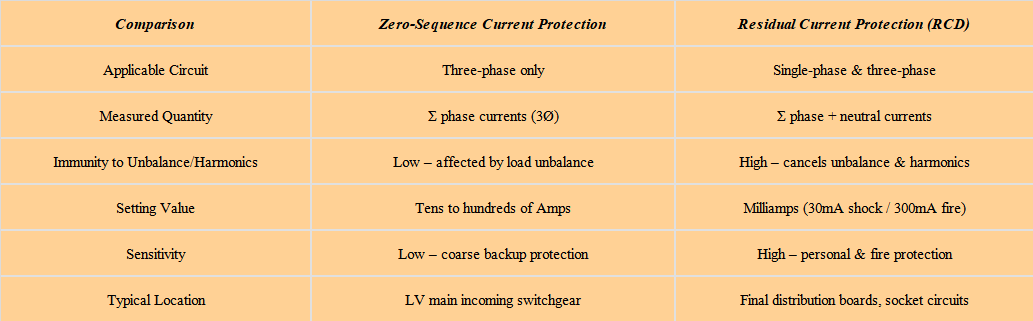

2.Differences

3. Recommended Configuration

Main Incomer:​ A zero-sequence current relay may be applied as a system-level backup to detect high-magnitude ground faults on the main feeder.

Sub-distribution & Final Circuits:​ RCDs must be installed—30 mA for direct-contact/shock protection, 100–300 mA for fire prevention in sockets, wet areas, and portable equipment circuits.

Best practice combines both: zero-sequence protection at the service entrance plus RCDs at branch and final circuits, delivering optimal system reliability and personnel safety.
